Art. 10147138
| Connection types | M8 connector |

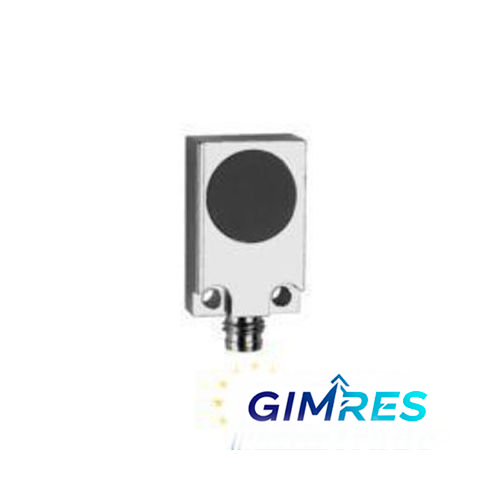

| Manufacturer SKU | IFFM 20P17A3/S35L |
| Output circuit | PNP normally open function (NO) |
| Max. Current consumption. (without load) | 10 mA |
| Supply voltage range +Vs | 10 … 30 VDC |
| Operating temperature | -25 … +75 °C |
| Type | Rectangular |
| Voltage drop Vd | < 2 VDC |
| Switching frequency | < 500 Hz |
| Reverse polarity protection | Yes |
| Hysteresis | 3 … 20 % of Sr |
| Output current | < 200 mA |
| Short-circuit protection | Yes |
| Housing material | Nickel-plated brass |
| Nominal measuring distance Sn | 8 mm |
| Mounting type | Flush |
| Protection class | IP 67 |
| Material (measuring surface) | PBT |
| IFFM 20P17A3/S35L Dimensions | 20 mm |
| Output display | Red LED |
| Housing length | 32 mm |
